Products that reflect Innovation
Vistaza products are designed to reflect our dedication to superior engineering, performance, durability, and aesthetics for any architectural project.
Product Lines
- Concealed hinges for a cleaner appearance and minimal interface
- Seamless welds for sleeker and modern appearance
- 6 Chambers design for improved energy efficiency and insulation
- Triple gaskets for improved weather sealing
- Nail fin option for easy installation
- Interior glazed for easy replacement
- 5 Chambers design for improved insulation
- Slimmer sight lines for better aesthetics
Vi5 Vs Vi6
New
New
Profile Size
70mm
82mm
Option for Nail fin
Yes
No
Structural class
CW and AW
CW
Design Pressure
50-70
65
Hinges
Standard
Concealed
Welds
Thin
Seamless
Glazing pocket
Up to 41mm
Up to 53mm
OITC range
Up to 33
Up to 40
STC
Up to 39
Up to 47
SHGC range
0.11-0.30
0.12-0.25
Max size
21 sf
24 sf
U-Factor range
0.20-0.36
0.18-0.32
Steel thickness
1.5 mm
2 mm
New
Vi5 Series
Profile Size
70mm
82mm
Option for Nail fin
Yes
No
Structural class
CW and AW
CW
Design Pressure
50-70
65
Hinges
Standard
Concealed
Welds
Thin
Seamless
Glazing pocket
Up to 41mm
Up to 53mm
OITC range
Up to 33
Up to 40
STC
Up to 39
Up to 47
SHGC range
0.11-0.30
0.12-0.25
Max size
21 sf
24 sf
U-Factor range
0.20-0.36
0.18-0.32
Steel thickness
1.5 mm
2 mm
New

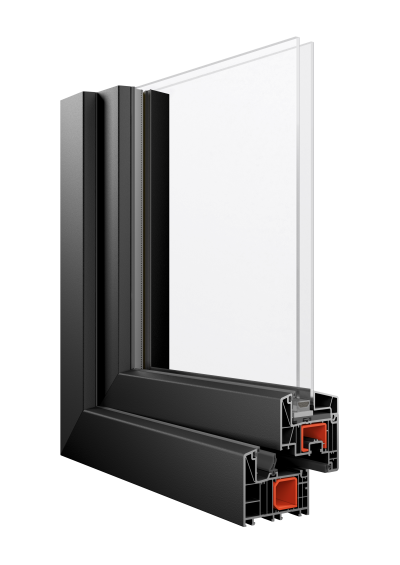

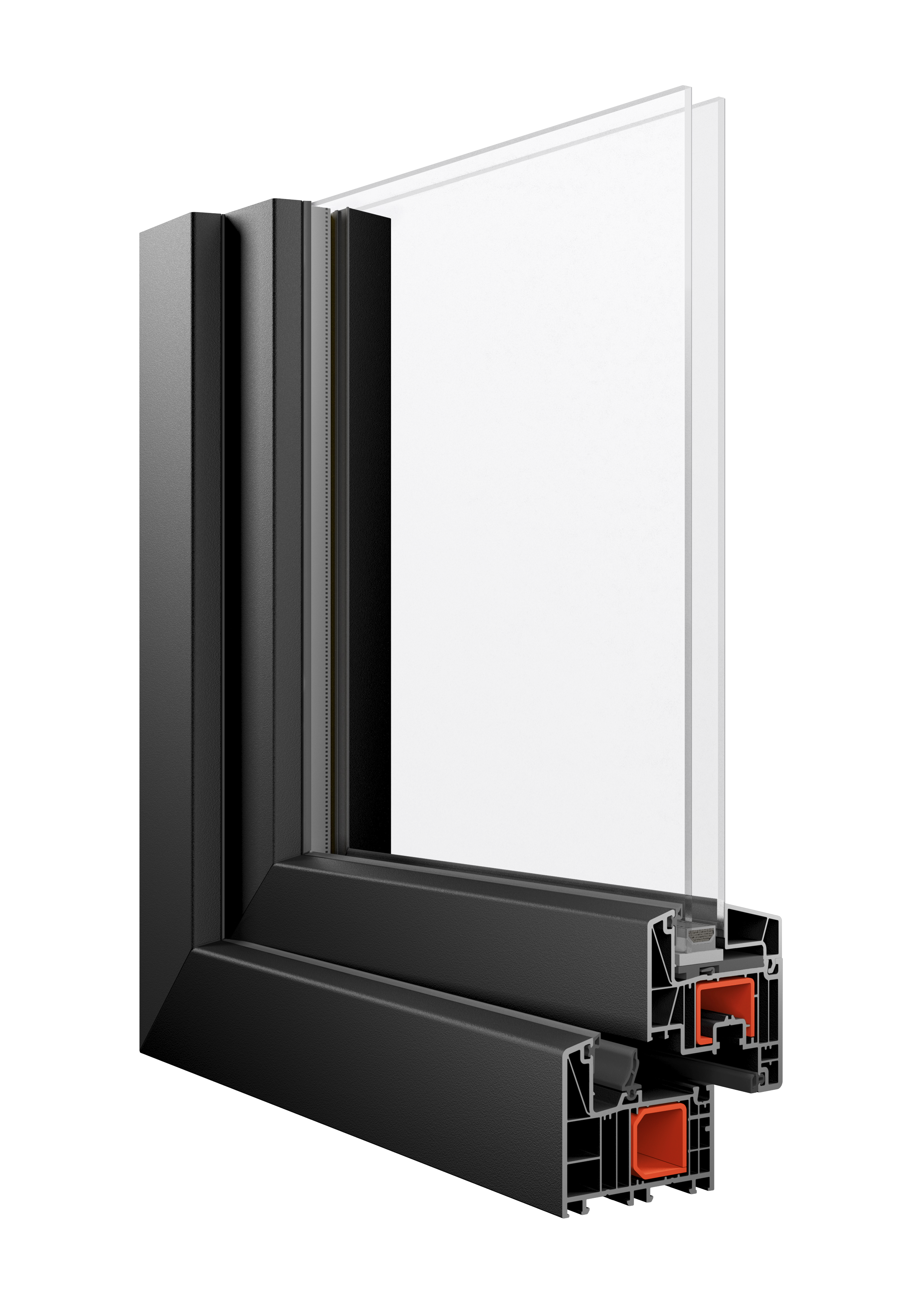

Vi6 Series
Profile Size
70mm
82mm
Option for Nail fin
Yes
No
Structural class
CW and AW
CW
Design Pressure
50-70
65
Hinges
Standard
Concealed
Welds
Thin
Seamless
Glazing pocket
Up to 41mm
Up to 53mm
OITC range
Up to 33
Up to 40
STC
Up to 39
Up to 47
SHGC range
0.11-0.30
0.12-0.25
Max size
21 sf
24 sf
U-Factor range
0.20-0.36
0.18-0.32
Steel thickness
1.5 mm
