How a High Performance window is made.

A window arrives as one object, and almost nothing about how it was made is visible in it. Four streams feed the bench where it is assembled: a multi-chamber uPVC bar drawn from a die, a length of steel, a sealed glass unit, and a set of stamped and cast hardware.

A test report proves that a design works. The process decides whether the hundredth unit on your job matches the one that went to the laboratory. This guide follows the four streams in the order they meet, names the test that checks each step, and ends with the questions worth asking any supplier.

The profile starts as a powder.

A uPVC profile begins as resin plus a short list of additives, each with one job. A heat stabilizer keeps the compound from degrading in the extruder. An impact modifier stops it cracking when something hits it cold. Titanium dioxide makes it white and opaque, and absorbs ultraviolet light in the surface layer so it never reaches the plastic underneath. There is no plasticizer, which is what the "u" in uPVC means — see what uPVC is.

Twin screws melt the blend and push it through a steel die shaped like the profile's whole cross-section: chambers, screw ports, gasket grooves and the glazing rebate, in one piece of tooling.

The profile leaves the die soft. Calibrators pull it against polished metal under vacuum while water cools it, at a few meters a minute — slower than a walk. That is where straightness and locked-in stress are settled. The test for stress is heat reversion: a length of profile is heated and may not shorten by more than a small set amount.

What it means. A straight bar makes a square sash, and a square sash compresses its gasket evenly all the way round. Uneven compression is where air, water and street noise get in.

The classes that describe a profile.

A profile data sheet carries classes, and almost nobody asks for it. The European profile standard sorts profiles by the thickness of the visible and rebate walls, by climate — a moderate class and a severe class, tested to different doses under a xenon lamp — and by impact, tested by dropping a one-kilogram weight onto a profile chilled to −10 °C (14 °F). North America has its own voluntary specification for rigid PVC exterior profiles, covering dimensional stability, impact, weathering and heat build-up.

Two fair cautions. The wall-thickness classes are one property among several, not a quality grade on their own. And the weathering classes rest on a radiant dose under a lamp, not a number of years outdoors.

Cut a little long, on purpose.

Bars are mitered at 45°, and every end is cut roughly 3 mm (1/8″) over size, because that much melts away in the weld. A frame that is the right size after welding was the wrong size before it. Saw accuracy matters more than most people expect: an error of a fraction of a degree opens a gap at the miter, and a gap is a weak corner.

Drainage slots, handle holes and hardware preparations are machined while the piece is still a straight bar.

What it means. The finished frame matches the ordered size, so the perimeter joint on site is the width the sealant was detailed for. And nobody has to route a drainage slot on a ladder.

The steel stops short of the corner.

Cold-rolled steel is cut, slid into its chamber and screwed at intervals so that steel and profile bend as one. Its jobs are deflection under wind and glass weight, straightness in transport, a solid bite for hinge and lock screws, and control of the bowing that heat causes. A dark foiled profile runs far hotter in sun than a white one, and the steel is what keeps a black window on a west wall locking easily in August.

Each length of steel stops short of the miter, clear of the hot plate.

The steel does not go round the corner. The corner is welded uPVC alone. That is why corners are tested by breaking them.

Four corners, one movement.

Two mitered faces are held against a hot plate covered in a non-stick film, at roughly 235 to 255 °C (455 to 491 °F), then pressed together until they fuse. A four-head welder does all four corners in one cycle, which is what makes the frame square rather than four separately square joints. Molten material squeezes out along the joint as a bead, and limiters shape it. The corner then cools on its own; forcing it with compressed air adds stress instead of saving time.

There is a window for all of this. Hotter and longer is not better — the published optimization curves rise and then fall with temperature, dwell and pressure.

Cleaning the corner without weakening it.

A corner cleaner trims the bead from the faces, the gasket grooves and the hardware groove. Removing material costs a little strength, so the depth and shape of the cut are controlled, and the milling must not break into the chambers that carry water.

The tidier seam is not the stronger one. A tight bead limit and a deep V-groove are the two finishes most likely to take strength out of a corner; a flush finish is neutral. Looks and strength are set by different steps. How to read a sample corner covers the four finishes you will be shown.

The direct check is a press: sample corners are broken under load and the failure stress compared against a reference value for that profile. Ask whether a supplier does it, and how often.

What heat treatment leaves in the glass.

Every pane starts as a ribbon of molten glass floating on liquid tin. Both faces come out flat and parallel with no grinding, which is why modern glass adds no ripple of its own, and why thickness comes in fixed steps. After that a pane may be cut, heat-treated, laminated, coated and sealed into a unit. Not every pane takes all of it.

Cutting and drilling come first. Then the glass is heated to around 620 °C (1,148 °F) and quenched with air, leaving the surfaces in compression and the core in tension. The same furnace makes heat-strengthened glass with a gentler quench and fully tempered glass with a harder one. Only fully tempered and laminated glass count as safety glazing — see safety glazing.

Three honest side effects. Cooling nozzles leave a faint strain pattern, most visible through polarized sunglasses; the standard names it as inherent and not a defect. The furnace rollers leave a shallow roller wave in reflections, so heat-treated glass is oriented with the wave parallel to the sill. And very rarely, a microscopic inclusion in tempered glass grows and breaks the pane months or years later. Heat soaking removes most of those panes in the factory, not all.

What it means. Sizes are final before the furnace. A wrong dimension is a new pane, not a trim, and a broken tempered unit is a made-to-order replacement with a lead time.

The coating is metal, and it is sealed inside.

A low-E coating is a stack of metal and oxide layers laid down in a vacuum chamber, with silver layers a few nanometres thick. It is not a tint and not a film. Silver is not stable in open air, so the coating always faces the sealed cavity, and it is ground off a band around the edge so the sealant bonds to bare glass. Surfaces are numbered from outside in, and which surface carries the coating changes the SHGC — so the make-up on the schedule has to say. What the coating does to the numbers is in the energy guide.

What it means. The layer doing the work cannot be scratched, cleaned off or weathered away, because nobody can reach it.

The edge seal is the life of the unit.

Panes are joined by a spacer filled with desiccant, a primary seal of butyl a fraction of a millimeter thick, and a thicker secondary seal outside it. The thin one is the vapor and gas barrier. The thick one you can see is structure, and protection for the thin one. Durability is tested by weeks of heat, humidity and weather cycling, after which the cavity must stay dry enough not to fog even at −40 °C (−40 °F).

What it means. A fogged unit is a failed edge seal, and it is replaced rather than repaired. Butyl loses its grip if it stays wet, which is why the glass sits on blocks in a drained rebate, and why a blocked weep hole shortens the life of the glass.

Hardware is stamped, cast, plated, then cycled.

The long flat parts — the strip round the sash edge, the connecting rods, the keepers — are punched from coiled steel in a progressive die, where every stroke of the press drops one finished part. Gear housings, hinge bodies and corner drives are die-cast in a zinc alloy. Steel parts then get three finishes: zinc, a passivation layer and a sealer. The zinc corrodes first so the steel does not.

Then it is tested. Three figures describe the hardware on a data sheet.

Box	What it is	What it means
Cycle grade	The sash is opened and closed by machine 5,000, 10,000 or 20,000 times, and must still close within a set force	At two openings a day, 20,000 cycles is decades of use. Hardware is a wear item with a known test behind it
Sash mass	The weight of the sash the hardware was tested with	Acoustic or triple glass moves a sash up a weight band. Check the heaviest sash on the job, not the typical one
Corrosion grade	Hours in neutral salt fog: 24, 48, 96, 240 or 480	A ranking, not a lifespan. Near salt water, or on a pool or spa floor, ask for the higher grade

One thing people get backwards: salt-spray hours do not convert into years outdoors. What each part does is in window hardware parts.

The glass holds the sash square.

This is where the four streams meet, and the step most worth knowing.

Glass never sits on the frame. It sits on small rigid blocks. In an opening sash the blocks go diagonally — under the glass at the hinge corner, against the glass at the far upper corner — so that the heaviest part of the window braces the lightest part and carries the load back to the hinges. It is the diagonal in a gate.

Blocks must be wider than the glass unit, kept clear of the corners, and must never cover a drainage slot. Where a unit is glazed before it ships, the blocks are fixed so they cannot slip in transit.

What it means. Most complaints that begin "the window has dropped" trace back to those two blocks, not to the hinges. Done right, the sash still closes with one hand years later, and the locking points still meet their keepers.

What gets checked before it leaves.

Outside dimensions against the order, diagonals compared, joints flush, gaskets seated, drainage clear. Glass viewed straight on in daylight from the standard distance, not with a flashlight at arm's length. Every sash opened, closed and locked.

Behind the checks sits a written system: procedures, inspections, records and a named person responsible. That is what factory production control means in the European window standard, and what North American certification programs check with unannounced plant inspections. It is the mechanism that makes a rating mean something in month ten of a job.

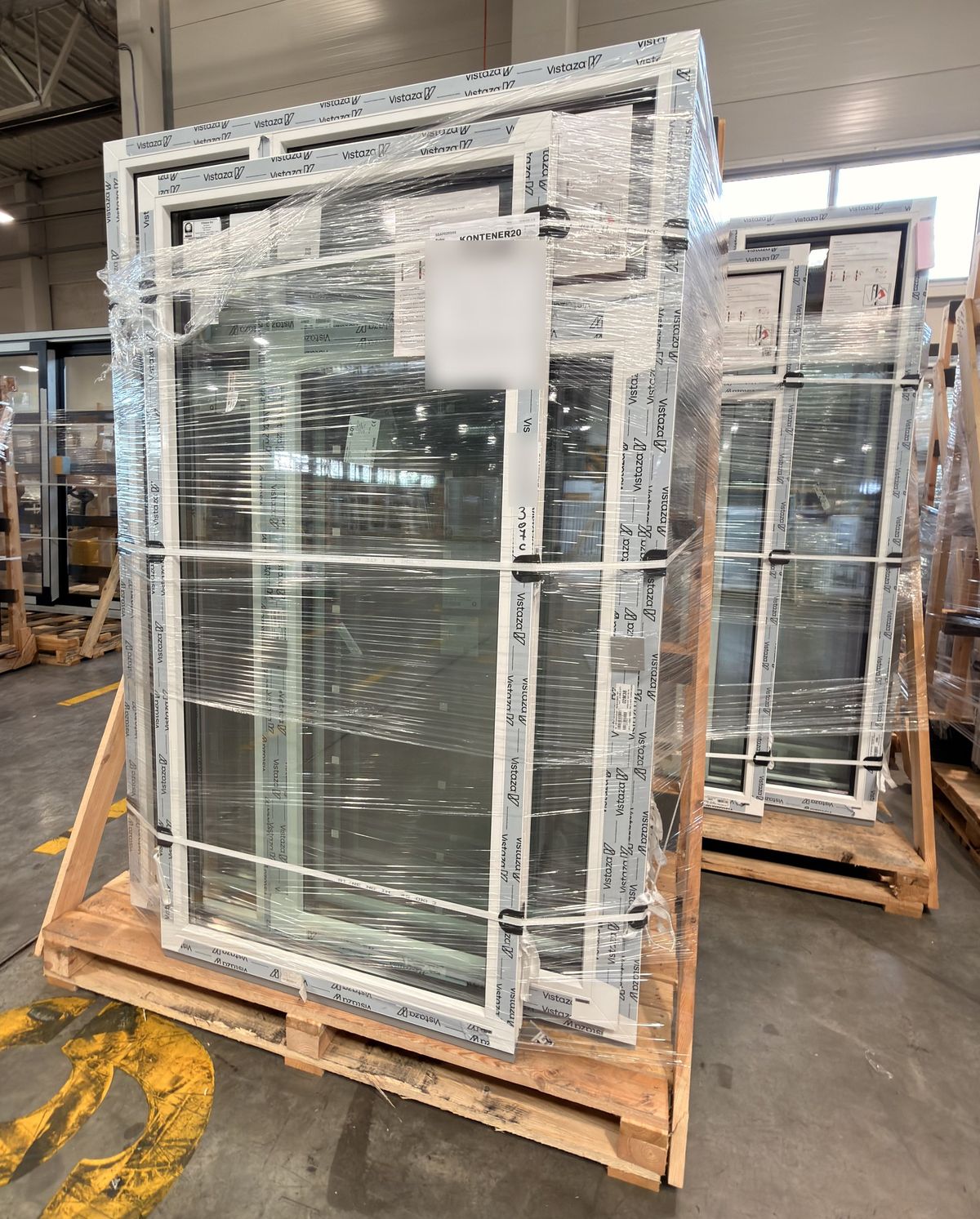

Then the unit gets its sticker — opening number, floor and elevation, and window type — and goes onto a rack, standing up, packed by floor and elevation. Everything from the container door onwards is in windows on site.

Where the numbers land.

Process explains why a rating repeats. The ratings themselves are certified, and each belongs to one type with one glass.

Type and glass	Rating	What a person notices
Vi6 casement, laminated acoustic triple-pane, warm-edge spacer	STC 47 / OITC 40, Intertek J4759; U-factor 0.18	The train outside is a background sound, not an event in the room
Vi6 casement, insulated triple-pane, krypton, warm-edge spacer	U-factor 0.17, CPD VST-K-4-00221-00001	The glass stays near room temperature, so the seat by the window is usable in January
Vi5 casement, acoustic double-pane, asymmetric, warm-edge spacer	STC 39 / OITC 33, Intertek P7089	Traffic drops to roughly half as loud as the standard insulated double-pane glass in the same frame

What to ask any supplier.

1. The profile's classes — wall thickness, climate and impact — and the standard they are claimed against.
2. Which panes are heat-treated, whether heat soaking is offered, and which inspection rule settles a reported blemish.
3. The glass make-up per opening, written out, with the coating's surface named.
4. Whether units are glazed before shipping, and who sets the glazing blocks.
5. The certified ratings for the exact type and glass you are buying, each with its report or certificate number.

Every one of those is answered on paper, or by a sample corner on your desk. To get both for your project, send your plans.
