Shop drawings.

Very detailed, and not complicated. Every opening in the building is drawn, tagged and checked against your plans — in a set you can review in one sitting.

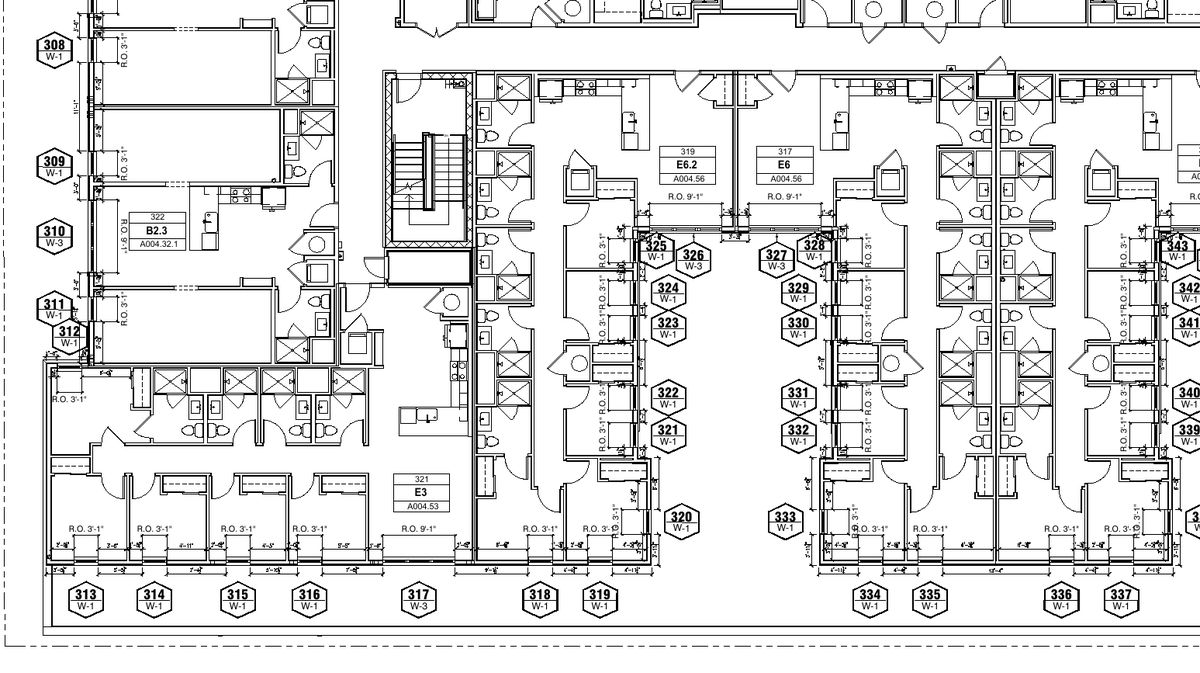

A floor plan, with a tag on every opening

Extracts from a real Vistaza set, with the project details removed.

What is in a set

Four things, every time.

01Floor plans

Your plans, with our windows dropped into them — so a unit that does not fit shows up on paper, not on site.

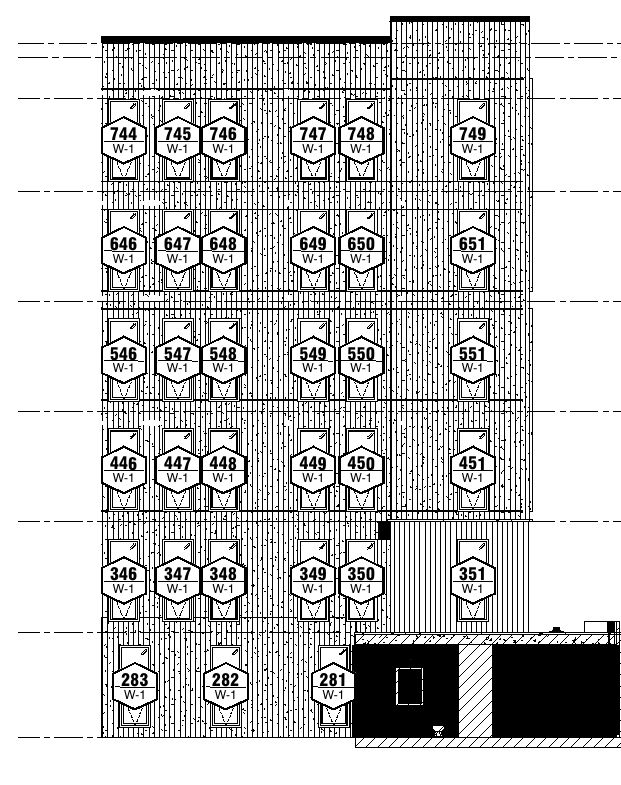

02Elevations

Every facade, with each opening shown the way it will look from outside.

03A tag on every opening

One number per opening. The same number is on the unit's sticker and in the Install app.

04Sections

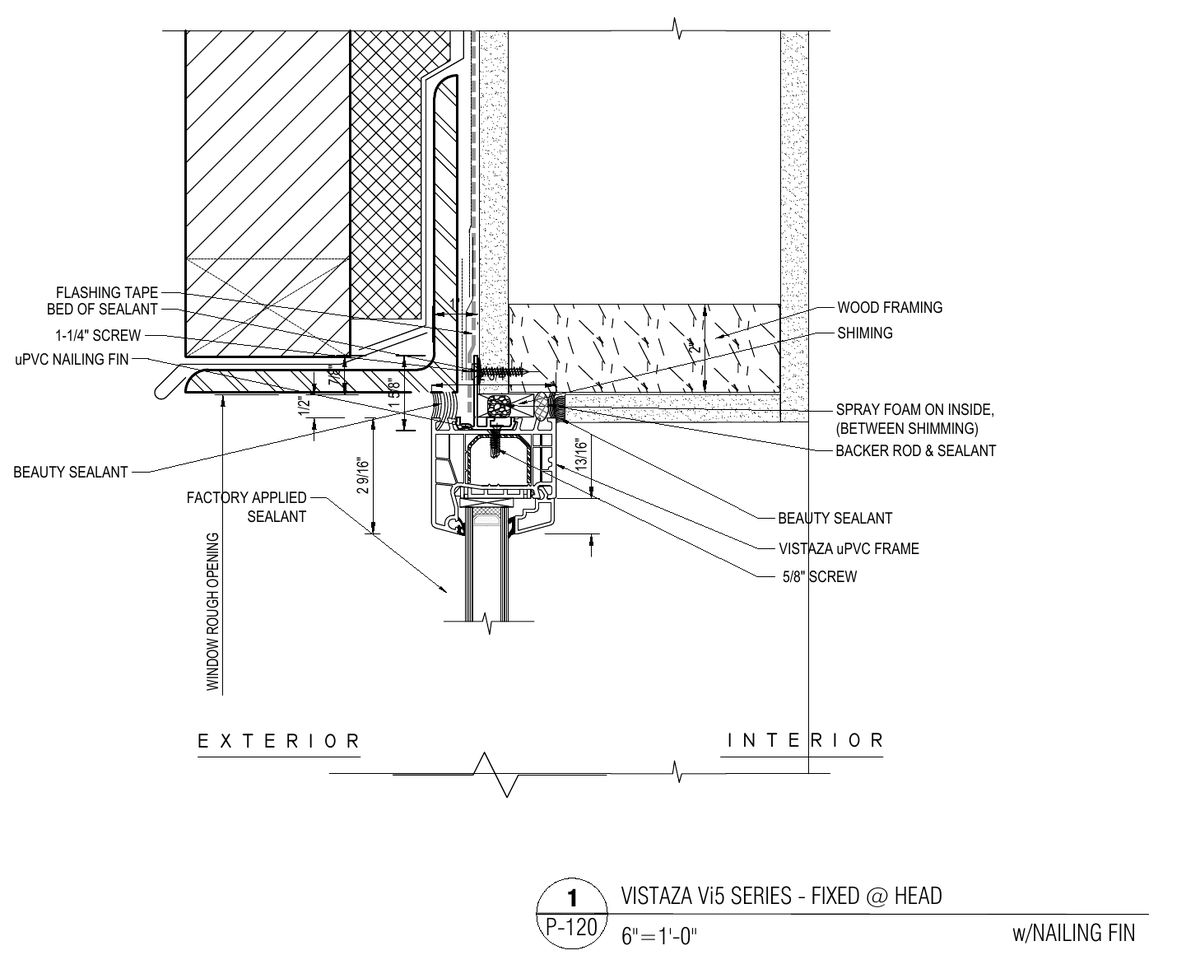

Head, sill, jamb and mullion details for each condition in the building.

Timing

Fast first set. Faster revisions.

The clock on fabrication starts when the drawings are approved, so a quick, clean review is worth real weeks.

1–2 wksfirst submission

1–3 dayseach revision

Reviewing a set

What to check, in order.

1 · Opening sizes against field conditions 2 · How each unit opens, and which way 3 · Glass by opening — tempered, acoustic, bird-safe 4 · Colors inside and outside 5 · Options — limiters, screens, louvers, sills Download the review checklistPDF
