For architects

The window schedule tool.

Draw Vi5 and Vi6 windows on screen. Get certified ratings, a 36 × 24 schedule sheet, a DXF and a CSV.

How to use it, in about two minutes.

How it works

One screen. Five steps.

01Pick a project

On the home page. Its name and address fill in.

02Add a type

Blank, a copy, a standard size, or a past job.

03Shape it

Series, sizes, layout and how each part opens.

04Glass and color

Standard glass comes first. Ratings follow.

05Export

Sheet, DXF, Revit, CSV, submittal, package.

Step 1

Start from a project.

  • On the home page, click Window Schedule and pick the project. The job takes its name and address.
  • Add the architect and the date. They print on the sheet and name the files.
  • The schedule is saved to your account as you work.
  • My jobs opens a schedule you made before. + New job starts an empty one.

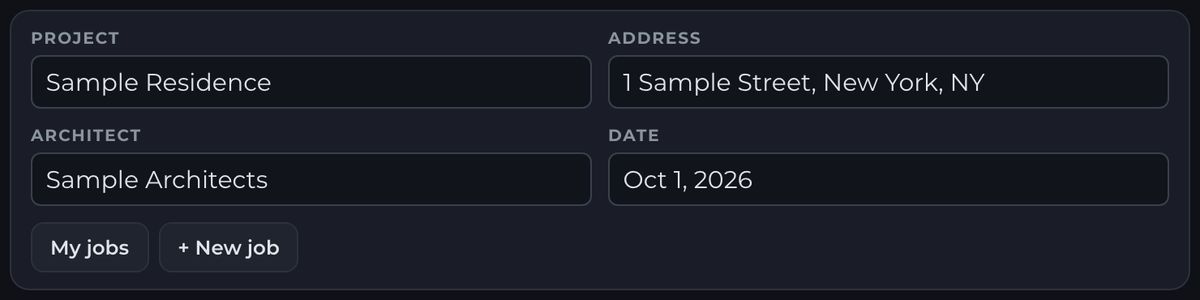

The tool opened from a project: a back link to the project, then the job bar with project, address, architect and date, My jobs and New job

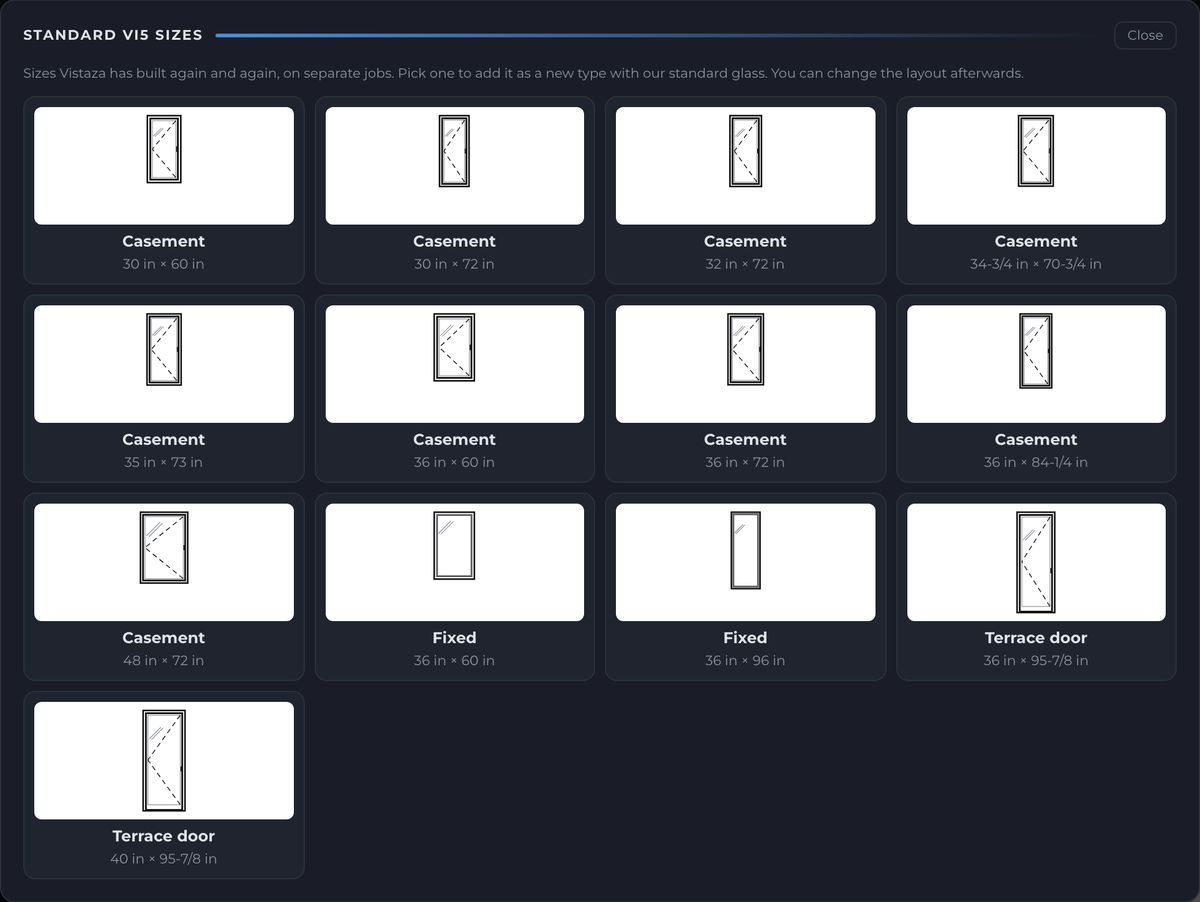

The standard sizes window: a grid of standard window and door types to pick from
Step 2

Add a window type.

  • + New type adds a casement to shape. Each type can be Vi5 or Vi6.
  • Copy this type: a copy of the type you picked, with the next free mark.
  • Standard sizes: Vi5 and Vi6 sizes we build again and again.
  • From a past job: copy windows from your own earlier schedules.
  • Each type is checked against our published sizes: Published, or Ask us. When it says Ask us, our engineering reviews it.
Step 3

Size it. Then shape it on the drawing.

  • Mark, quantity and location, for the schedule.
  • Series: Vi5 or Vi6. Install: clips or nail fin.
  • Frame size: 48, 4′-0″, 48 1/2 or 1219 mm (48″) all work.
  • Pick a layout group, then the layout inside it.
  • Click a section to edit it. + adds a section on that side. The window grows; the others keep their size.
  • Make it fixed, casement, hopper or door, and set the hinge side, seen from outside.
  • Click any blue size on the drawing to type a new one.

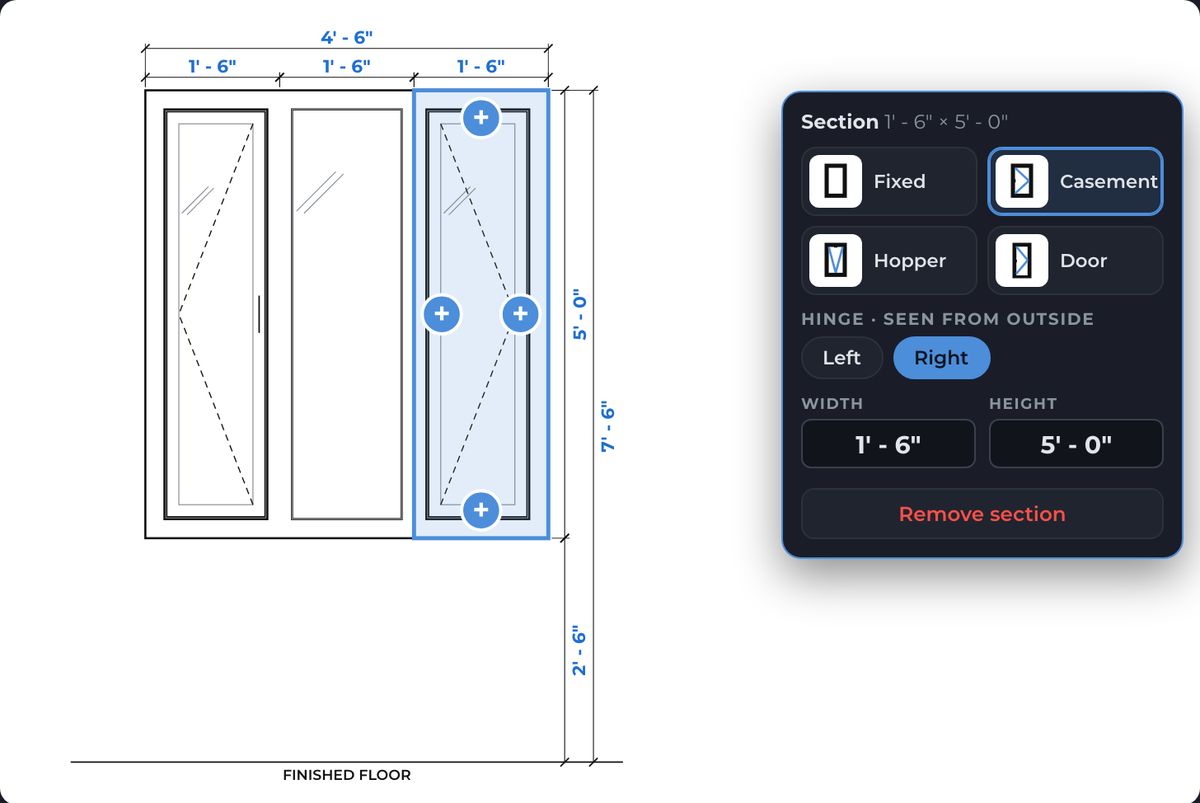

A three-section window on the drawing with the section card open: fixed, casement, hopper or door, hinge side, width and height

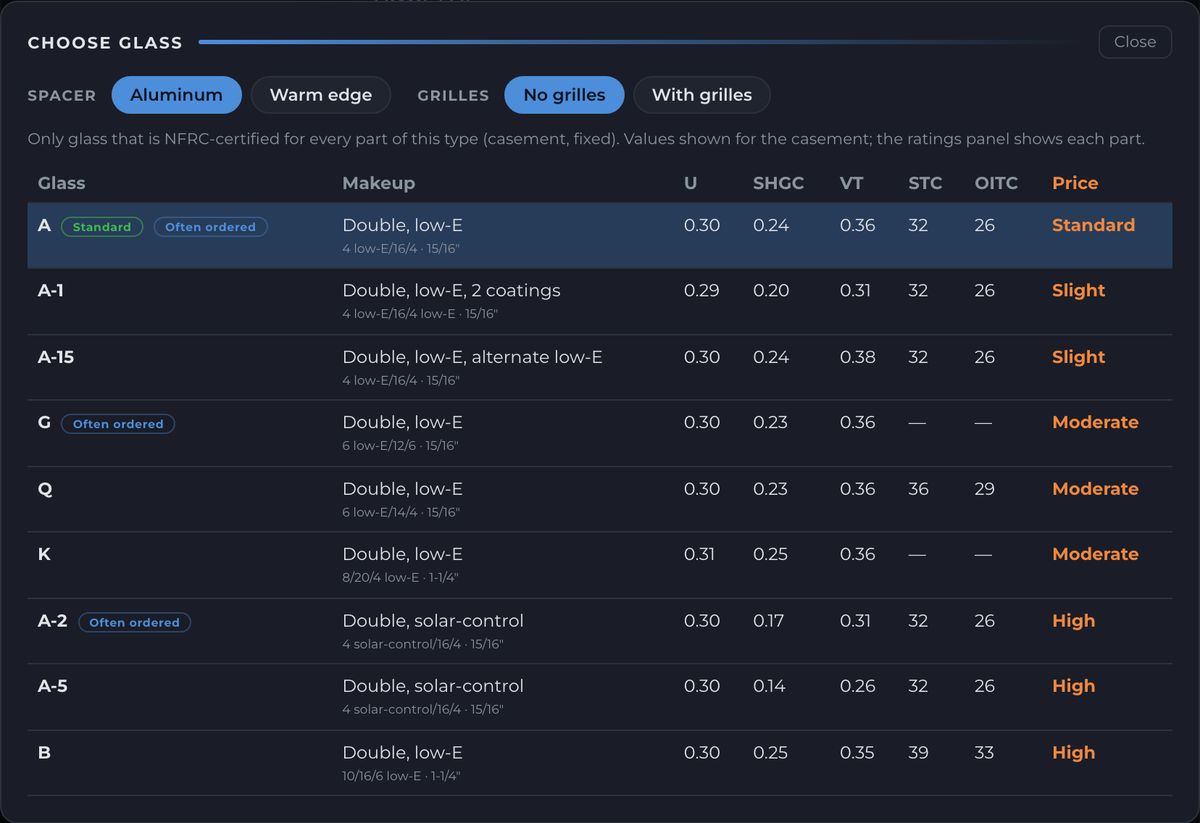

The glass list: each glass with its makeup, U-factor, SHGC, VT, STC, OITC and its price in words
Step 4

Glass and color. The ratings follow.

  • Only glass certified for every part of the type is listed. Our standard glass is first.
  • Price in words: Standard, Slight, Moderate, High, Higher.
  • Color outside: Black is standard. Color inside: White is standard. The full range is under More colors.
  • Simple shows the main ratings. Detailed adds structural, test reports and certificate numbers.
Step 5

Export the schedule.

  • Every type is a row. Click one to open it again.
  • Schedule sheet: the 36 × 24 sheet, every type at 1/2″ = 1′-0″.
  • CAD · DXF: every elevation on one floor line, plus the table.
  • Revit · RFA: Revit families for the types in the schedule.
  • Table · CSV: the schedule for a spreadsheet.
  • Submittal: hands the types and glass to the Vistaza submittal maker.
  • Make package: a design package link with drawings, a DXF and pictures that follow.

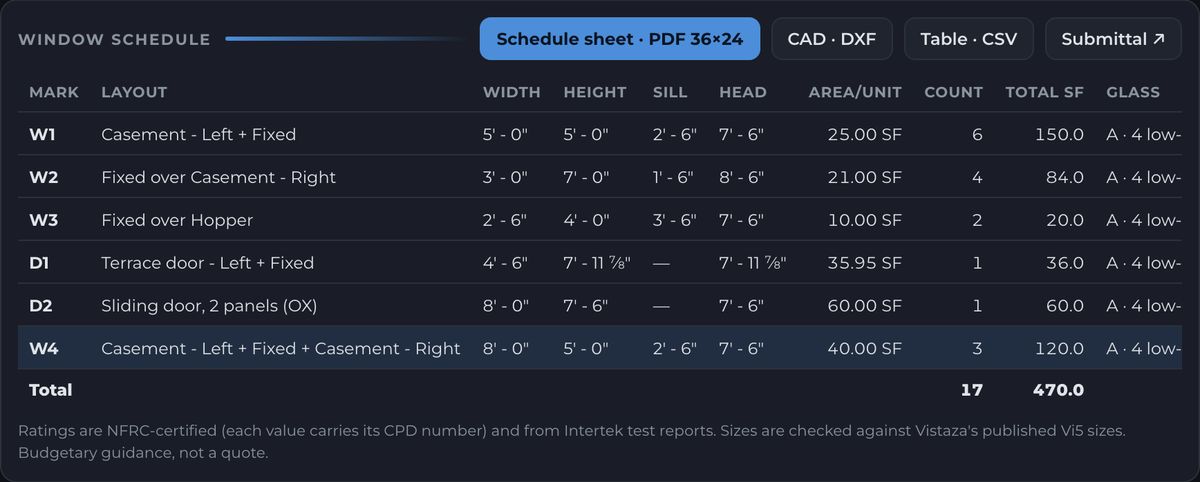

The schedule table: one row per window type with sizes, glass, ratings and color, and the export buttons
What you get

The sheet, the DXF, the table.

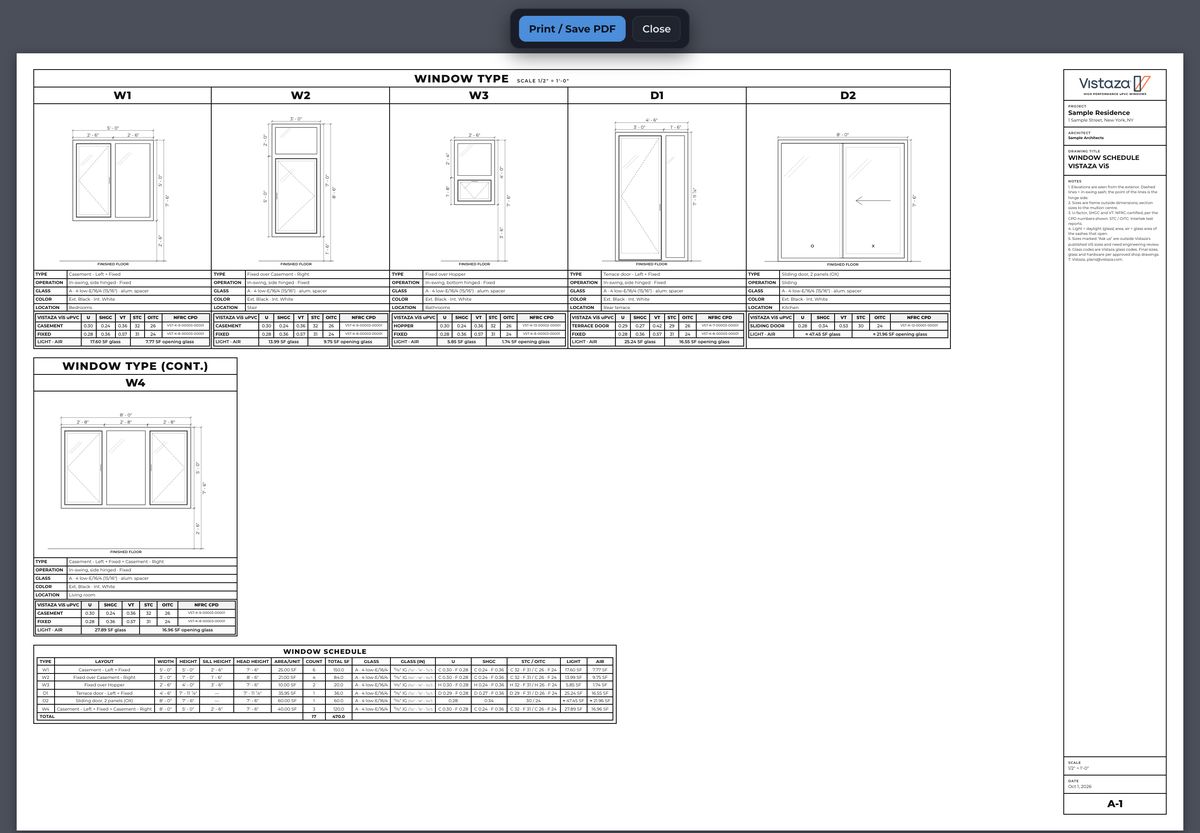

The 36 by 24 schedule sheet: every window type drawn at one scale with its ratings, then the schedule table and a title block
The 36 × 24 sheet

As the tool prints it. Every type at 1/2″ = 1′-0″ with its ratings, then the table and your title block.

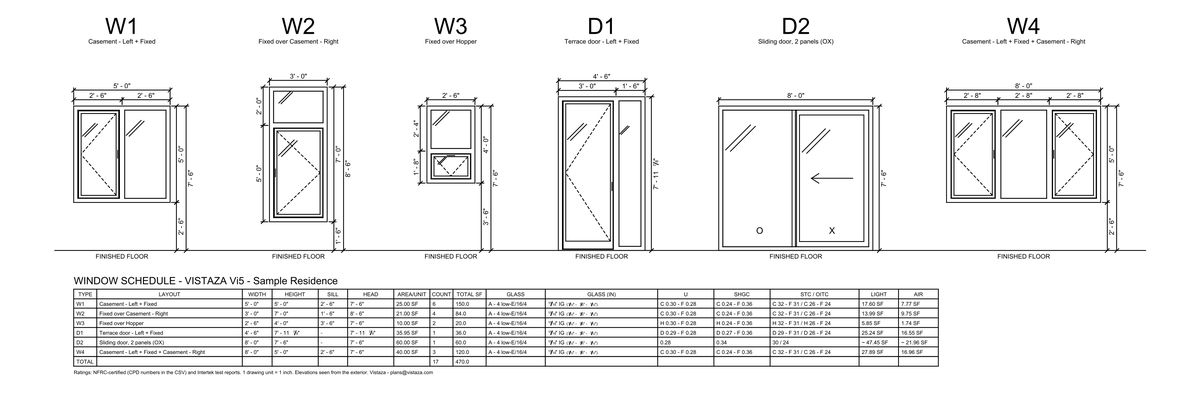

The DXF opened in CAD: every window elevation standing on one floor line, with the schedule table below
The DXF and the table

The DXF, opened in CAD: every elevation on one floor line, and the table. One drawing unit is one inch.

The CSV has one row per type: mark, series, layout, sizes, sill and head, quantity and areas, glass, U-factor, SHGC, STC / OITC, class, air infiltration, light and air, color, location, the size check, the NFRC certificate numbers and the sections.

Good to know

Four things worth knowing first.

  • Doors stand on the floor: their sill stays at zero and the head is the door height.
  • Jobs are saved to your account as you work. My jobs lists the ones you made.
  • Ask us, in amber, means outside our published Vi5 and Vi6 sizes. Send it; our engineering reviews it.
  • Ratings are the certified values for the glass you picked, per part. The whole window takes its lowest part.

Want to use it?

Access is by invitation. Tell us your firm and the project you are working on.

Request access

Request access

Access is by invitation. Tell us who you are and we send the invitation to your work email.
